IIoT Gateways

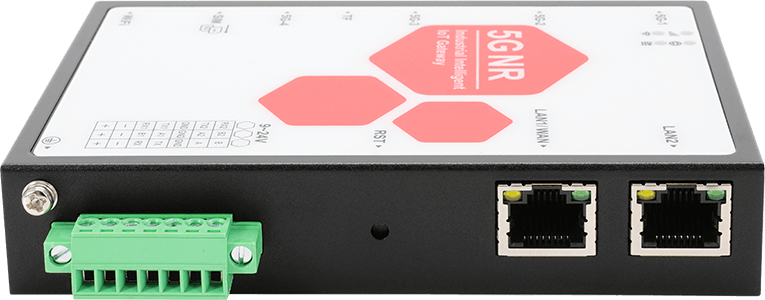

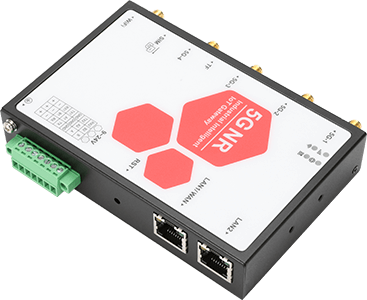

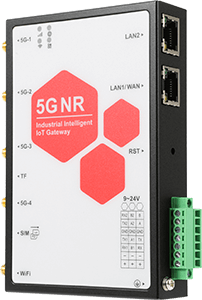

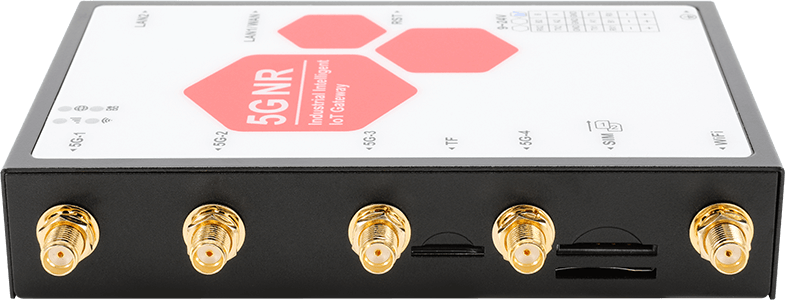

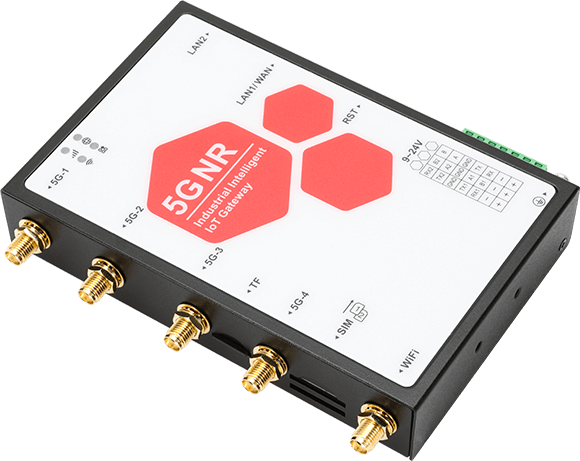

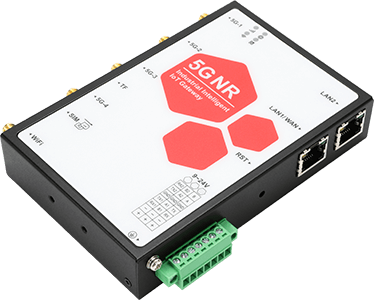

Z2 5G Industrial Gateway

5G broadband with extreme low latency
Data acquisition and edge processing
Dividing VLAN, network isolation
With wide temperature and resistance to strong electromagnetic interference

Product Introduction

Z2 5G Industrial Gateway is a new generation of 5G gateway with edge computing capability. Its built-in 4-core high-performance processor supports floating point computing and built-in embedded memory, external TF card interface support local storage and data processing. The open software architecture design provides fast and flexible customization, rich and diverse interfaces, local real-time data analysis and intelligent processing with strong temperature, electromagnetic resistant and is able to adapt to different industry scenarios.

Features Tech Specs Downloads Ordering

Data Collection

2 x 100/1000 Mbps
RS-232 + RS-485
TF storage

5G NR Ready

13 Bands support of 5G
SA/NSA compatible
Maximun uplink optimize
Designed for URLLC & EMBB business

Compact Design

Compact size and full 5G feature
2 to 5 antennas fits various case
Qualcomm solution
IPQ40X9 series chipsets
Qualcomm X55 modem

Compatibility

Compatible with 4G Cat 20
Support 5G SA & NSA

Maintainability

Support Web/CLI/SNMP/Wedora platform management
Cloud OTA and monitoring

Sercurity

PPTP/L2TP/GRE/IPSec/OpenVPN/DMVPN/EzVPN Supports
IP/Domain/MAC Filter/Access Control List(ACL)

Hardware
CPU	Quad-core ARM Cortex A7 @717MHz
RAM	512MB
FLASH	32MB+8GB eMMC
Cellular Interface
Modem	1 x 5G NR SA/NSA
Number of Antennas	4
Connector	SMA-K
SIM	2 x Mini SIM (2FF)
Wireless Interface
Standards	802.11b/g/n, AP or station modes
Frequency Bands	2.4 GHz
Speed	150Mbps
Security	WEP, WPA, WPA2
Encryption	64/128 AES, TKIP
Antennas	1
Connector	SMA-K
GNSS Interface
Number of Antennas	1 (only for GPS version，Share with WiFi)
Connector	SMA-K with 50 ohms impedance
Dead Reckoning	N/A
Peripheral Interface
Ethernet	1 × LAN 10/100/1000 Mbps + 1 × WAN/LAN 10/100/1000 Mbps, Gigabit Ethernet
Serial Type	1 x RS-232 + 1 x RS-485 serial port
Socket Form	1 x 7-pin 3.5 mm female socket
Signal Definition	RX,TX,GND (RS-232) A+,B-,GND (RS-485)
Baudrate	RS-232 (300-115200bps) RS-485 (300-115200bps)
AVOUT	N/A
GPIO	N/A
SD card	TF card slot
USB
Video port	N/A
Audio Port	N/A
Software
Auto Fail-over	Between: Cellular and WAN Cellular and Wi-Fi (station mode) WAN and Wi-Fi (station mode)
Network Protocols	PPP, PPPoE, TCP, UDP, IPv4, IPv6, SSL, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, ARP, NTP, Telnet, SSH, DDNS, etc.
Routing	Static Routing, Policy routing, RIP, OSPF and BGP, etc.
Firewall	NAT, PAT, DMZ, Port Forword IP/Domain/MAC Filter, Access Control List
VPN	PPTP/L2TP/GRE/IPSec/OpenVPN/DMVPN
Remote Management	HTTP, Telnet, SSH, SMS SNMP V1/V2/V3, SNMP TRAP Hongdian Wedora Cloud Platform
Serial Ports Function	Transparent, Modbus RTU, etc.
Power Supply and Consumption
Connector	2 pin socket
Voltage Input	+9V~+36V DC
Power Consumption	Idle: 350mA@12V DC Data transceiving:1.3A@12V DC
Others
Reset Button	Yes
LED Indicators	4 x indicators for WiFi, SIG, NET, SYS
Hardware Watchdog	Yes
Physical Characteristics
Ingress Protection	IP66
Housing & Weight	Metal, 290g
Dimension	137×83×24(mm)
Installations	Desktop, wall mounting and DIN rail mounting
Operating Temperature	-30 ~ +70℃
Storage Temperature	-40 ~ +85 °C
Relative Humidity	5 ~ 95%
EMC
ESD	EN61000-4-2, level3
RS	EN 61000-4-3, level3
EFT	EN 61000-4-4, level3
CS	EN 61000-4-6, level3

File Name

Hongdian Datasheet-Z2 5G Industrial Gateway-2024V1.0

Download

Product

Part No.

Frequency

Interface

Region

5G modem

WLAN

RJ45

RS232

RS485

5G Industrial Gateway

Z2-N005-W-2R-CS

NSA/SA: n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48*/n66/n71/n77/n78/n79
LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12(B17)/B13/B14/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71
LTE-TDD:
B34/B38/B39/B40/B41/B42/B43/B48
LTE DL 4×4 MIMO:
B1/B2/B3/B4/B7/B25/B30/B32/B34/B38/39/B40/B41/B42/B43/B48/B66
LAA:
B46(only support 2×2 MIMO)
WCDMA:
B1/B2/B3/B4/B5/B6/B8/B19

Global

VIEW ALL

PRODUCT DATASHEET

DOWNLOAD

Application

5G Smart Factory

// Enterprise Network

Automatic Guided Vehicle

// Industrial Automation

Oil & Gas Pipeline Monitoring

// Energy Management

5G Smart Factory

// Enterprise Network

Automatic Guided Vehicle

// Industrial Automation

Oil & Gas Pipeline Monitoring

// Energy Management

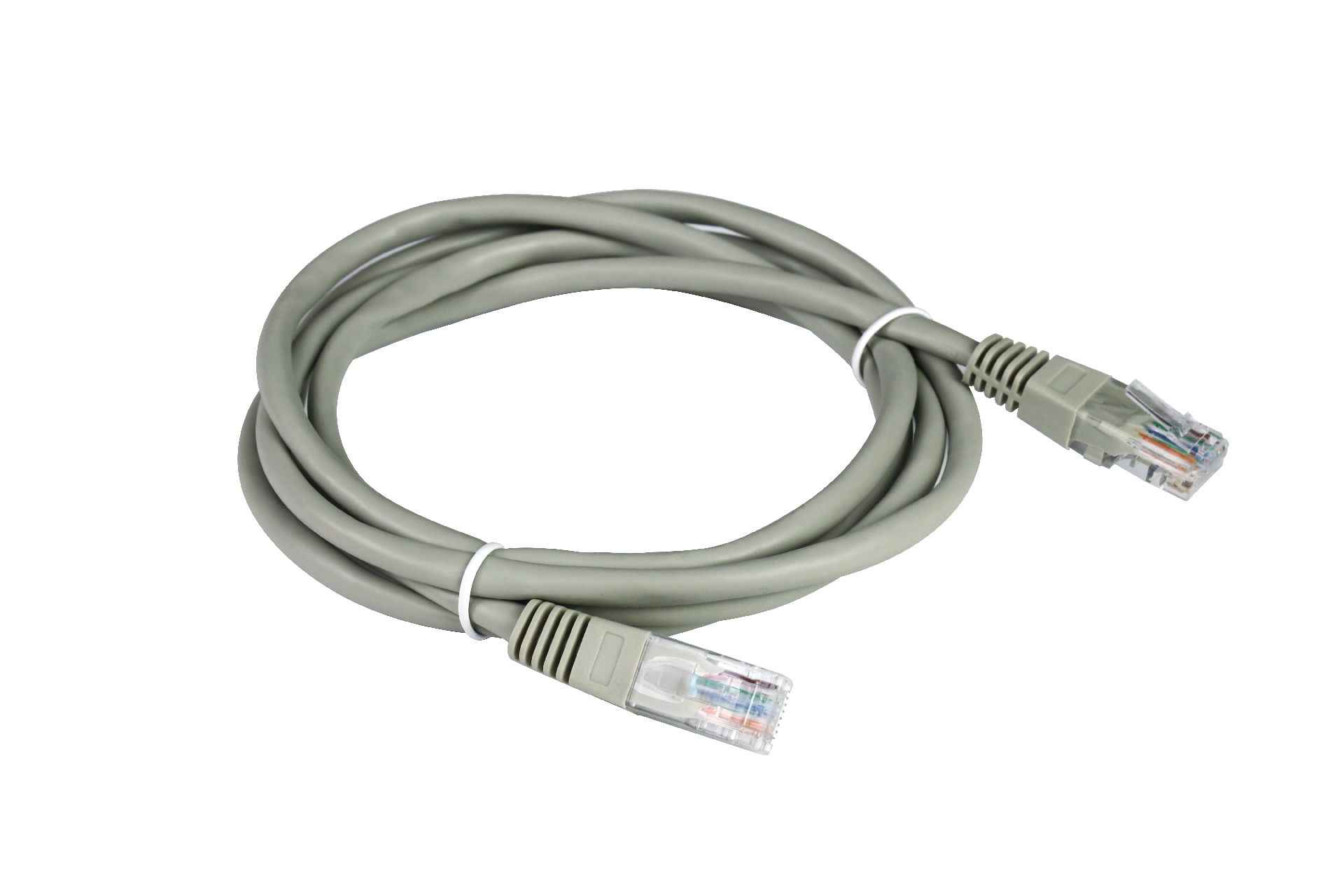

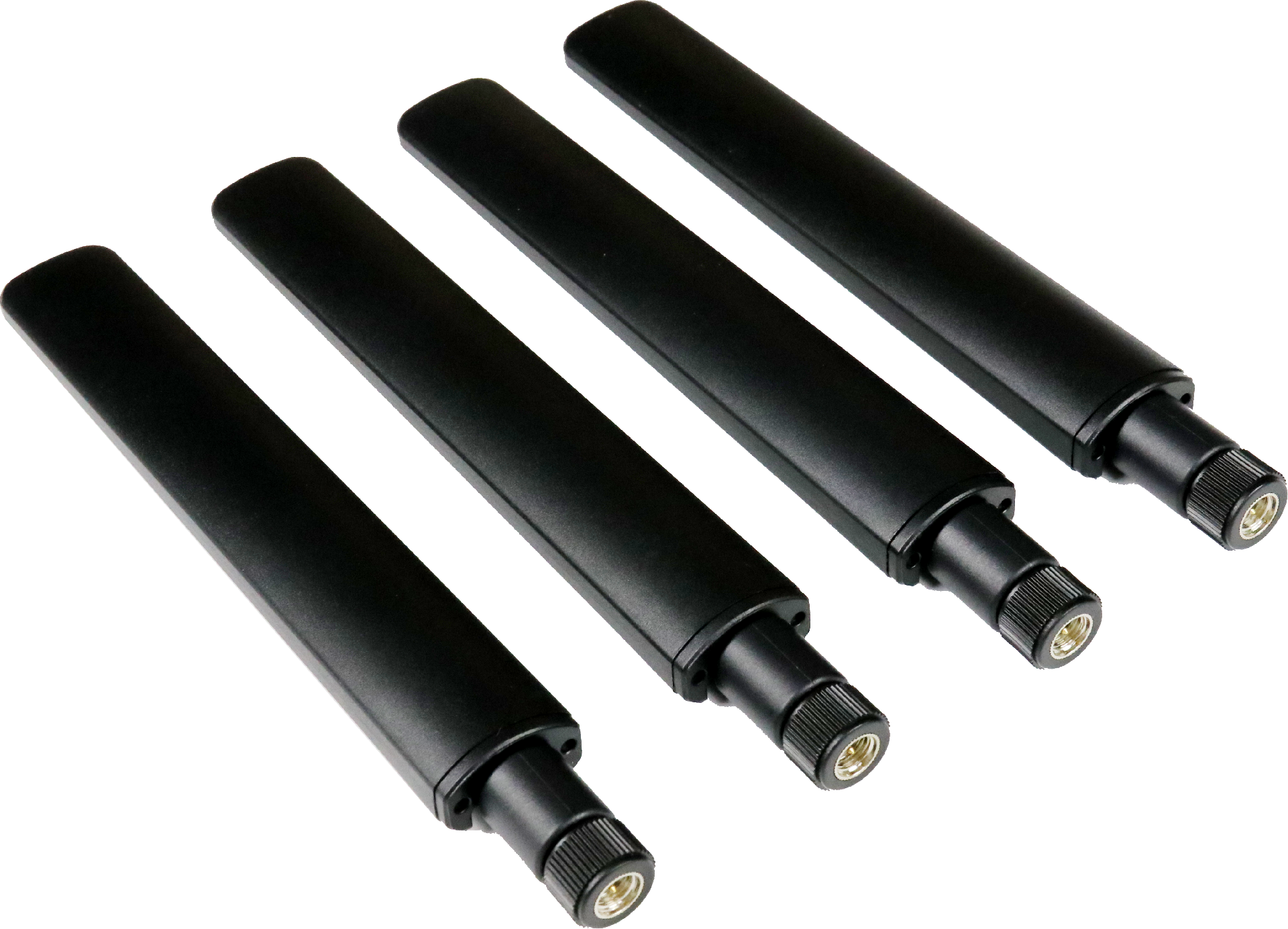

Compatible Accessories

MORE ACCESSORIES

Related Products

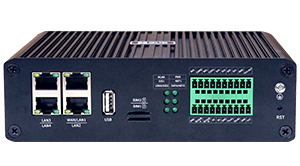

X1 4G Industrial Gateway

LTE Cat1/Cat4 with industrial CPU
Data acquisition and edge processing
Support various industrial protocols
Programable with C and python

LEARN MORE

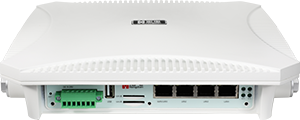

Z1 5G Industrial Outdoor Gateway

Enhanced 5G download rate
Dividing VLAN, network isolation
IP66 protection
Support Hongdian Wedora RMS for cloud based management

LEARN MORE

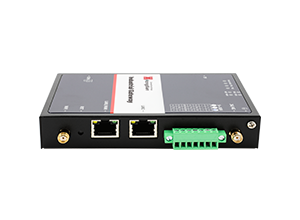

Z4 Edge Computing Gateway
