In-Vehicle Series

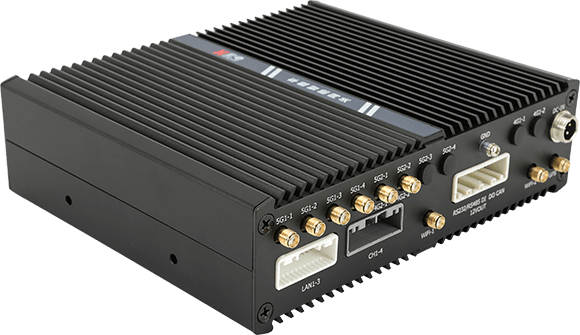

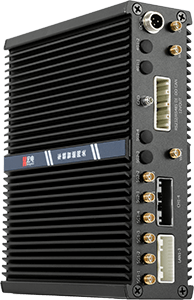

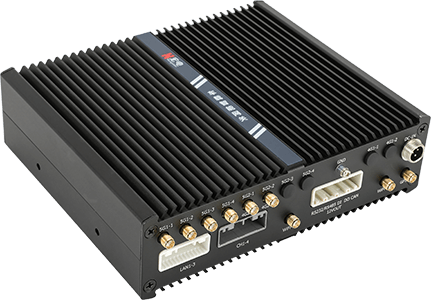

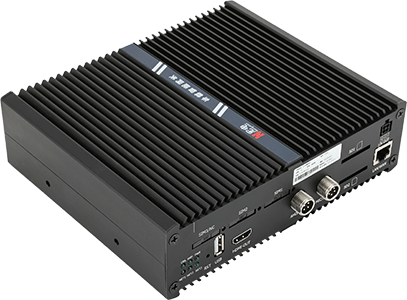

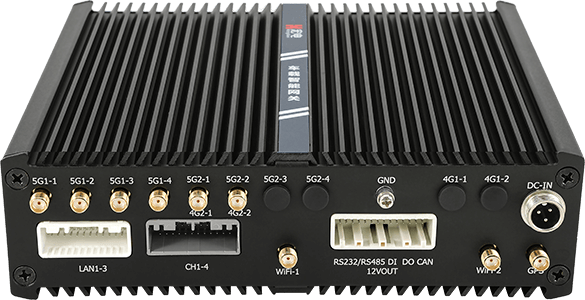

H3960 Vehicle Gateway

Support dual 5G FRER(Frame Replication and Elimination for Reliability), as well as dual-module hot backup
Support 4 channels of 1080P HD video collection
Support mainstream communication protocols such as Modbus TCP/RTU, MQTT,etc.
Support DSM driving behavior detection, support safety driving alarms

Product Introduction

H3960 Vehicle Gateway is an AI intelligent gateway based on high-performance multi-core 64-bit ARM processor. It realizes real-time acquisition and transmission of multi-channel HD video through 5G multi-module load balancing and bandwidth binding, and supports DSM camera and DSM fatigue driving analysis. It can also be combined with the iScan platform to provide users with a total turnkey vehicle solution.

Tech Specs Downloads Ordering

Hardware
CPU	Dual core ARM Cortex-A72 + Dual core ARM Cortex-A53 @2.0GHz
NPU	N/A
Memory	2GB
Built-in storage	8GB
Cellular Interface
Modem	1 or 2 x 5G NR SA/NSA or 1 x LTE CAT4 & 2 x 5G NR SA/NSA
Number of Antennas	4 or 8 or 10
Connector	SMA-K
SIM	3 × Mini SIM (2FF)
Wireless Interface
Standards	802.11b/g/n/ac, AP or station modes
Frequency Bands	2.4 GHz & 5GHz
Speed	1167Mbps
Security	WEP, WPA, WPA2
Encryption	64/128 AES, TKIP
Antennas	1
Connector	SMA-K
GNSS Interface
Number of Antennas	1
Connector	SMA-K
Dead Reckoning	N/A
Peripheral Interface
Ethernet	3 × LAN 10/100/1000Mbps + 1 × WAN/LAN 10/100/1000Mbps, Gigabit Ethernet
POE	N/A
Serial Type	2 x RS-232 (2 x RS-232 port can be configured as a RS-485 port) 2 x RS-485 serial port
USB	1 x USB 2.0
TF Card	2 x SD Card
Can	1(Optional)
IO	2 x DO, 4 x DI
SFP	N/A
Audio	1× AHD, 1× MIC/SPK
Display	1 x HDMI 2.0, 1x LVDS
Software
Video code	H.265/H.264/VP9 4K@60fpsHD video decoding H.265/H.264/VP9 1080P@100fpsHD videoencoding
Image processing	BMP, JPG, PNG, GIF
Auto Fail-over	Between: Cellular and WAN Cellular and Wi-Fi (station mode) WAN and Wi-Fi (station mode)
Network	Muti-DNN, APN, VPDN, QoS, 5G LAN
AI algorithm	Support DSM driving behavior detection, support safety driving alarms such as speeding and fatigue
Firewall	NAT, PAT, DMZ, Port Forword IP/Domain/MAC Filter, Access Control List
VPN	PPTP/L2TP/GRE/IPSec/OpenVPN/DMVPN
Remote Management	HTTP, Telnet, SSH, SMS SNMP V1/V2/V3, SNMP TRAP Hongdian Wedora Cloud Platform
Serial Ports Function	Transparent, Modbus RTU, etc.
Power Supply and Consumption
Connector	4 pin socket
Voltage Input	DC 12V～36V
Power Consumption	Idle: 400mA@24V DC, Data transceiving: 1.5A@24V DC
Others
Reset Button	Yes
LED Indicators	6 x indicators for PWR, WiFi, 4G, NET1, NET2, NET3,ONL
Hardware Watchdog	Yes
Physical Characteristics
Ingress Protection	IP30
Housing & Weight	Metal, about 1200g（Dual 5G module）
Dimension	235×164.3×55.5mm
Installations	Wall-mounting
Operating Temperature	-30 ~ +75 °C
Storage Temperature	-40 ~ +80 °C
Relative Humidity	5 ~ 95%
EMC
ESD	EN61000-4-2, level3
RS	EN 61000-4-3, level3
EFT	EN 61000-4-4, level3
CS	EN 61000-4-6, level3

File Name

Hongdian Datasheet-H3960 Vehicle Gateway-2024V1.0

Download

Product	Part No.	5G Frequency	4G Frequency	Interface								Region
Product	Part No.	5G Frequency	4G Frequency		5G modem	4G modem	WLAN	RJ45	RS232	RS485	CAN	Region	GPS
H3960 Vehicle Gateway	H3960-2N005L100-2W-8R-2C2S	NSA/SA: n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48*/n66/n71/n77/n78/n79 LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12(B17)/B13/B14/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71 LTE-TDD: B34/B38/B39/B40/B41/B42/B43/B48 LTE DL 4×4 MIMO: B1/B2/B3/B4/B7/B25/B30/B32/B34/B38/39/B40/B41/B42/B43/B48/B66 LAA: B46(only support 2×2 MIMO) WCDMA: B1/B2/B3/B4/B5/B6/B8/B19	4G(LTE-FDD): B1/B3/B5/B7/B8/B20 4G(LTE-TDD): B38/B40/B41 3G: B1/B5/B8 2G: B3/B8	2	1	2	8	2	2	1	1	Europe, the Middle East, Africa, Korea, Thailand, India, Malaysia
	H3960-N0052L100-2W-8R-2C2S			1	2	2	8	2	2	1	1	Europe, the Middle East, Africa, Korea, Thailand, India, Malaysia
	H3960-N005L100-2W-8R-2C2S			1	1	2	8	2	2	1	1	Europe, the Middle East, Africa, Korea, Thailand, India, Malaysia
	H3960-2N005L108-2W-8R-2C2S	NSA/SA: n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48*/n66/n71/n77/n78/n79 LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12(B17)/B13/B14/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71 LTE-TDD: B34/B38/B39/B40/B41/B42/B43/B48 LTE DL 4×4 MIMO: B1/B2/B3/B4/B7/B25/B30/B32/B34/B38/39/B40/B41/B42/B43/B48/B66 LAA: B46(only support 2×2 MIMO) WCDMA: B1/B2/B3/B4/B5/B6/B8/B19	4G(FDD-LTE): B1/B2/B3/B4/B5/B7/ B8/B28 4G(LTE-TDD): B40 3G: B2/B3/B5/B8	2	1	2	8	2	2	1	1	Oceania, South America
	H3960-N0052L108-2W-8R-2C2S			1	2	2	8	2	2	1	1	Oceania, South America
	H3960-N005L108-2W-8R-2C2S			1	1	2	8	2	2	1	1	Oceania, South America
